ESP surface equipment skid is fabricated where all the devices and services are integrated at the surface equipment manufacturer's site. The dimensions and weight allow the skid to be transported and installed at the site as one complete unit without....

Transformers used in ESP applications include step-up transformers (SUT), step-down transformers (SDT), phase-shifting transformers (PST), and step-down phase-shifting transformers (DPST). Aluminum winding material and copper winding are options. The....

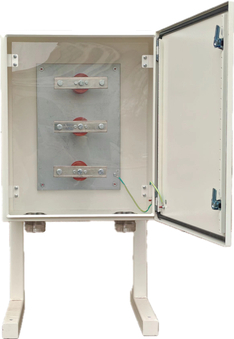

Wellhead junction box is used in oilfield artificial lift application on land. Small amounts of gas can migrate up downhole cables used to power artificial lift equipment in oilfield. The wellhead junction box is used for electrical power surface con....

The High Voltage Safety Junction Box is used as an independent surface equipment that is mounted between the step-up transformer (SUT) and electrical submersible motor (ESM) to detect the regenerative high voltage electricity power from downhole perm....
